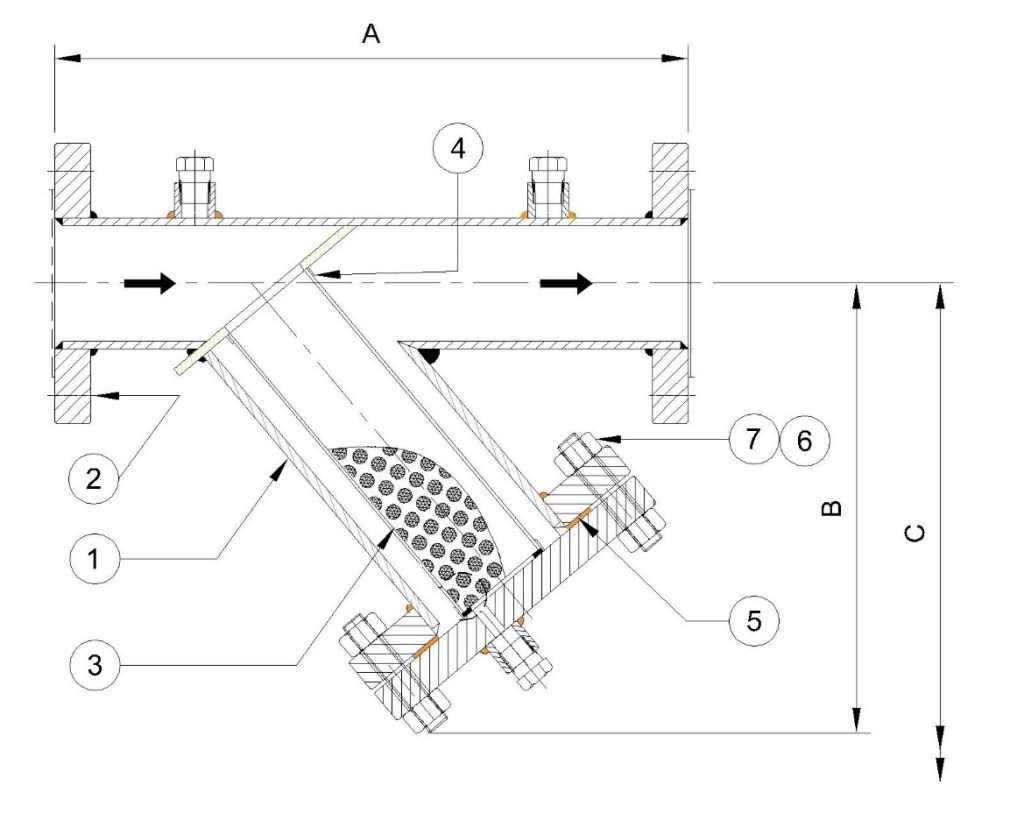

Y Type Strainer

Y Type Strainers are devices that is used for mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. They are used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment. These types are cost effective straining solutions in many applications. Where the amount of material to be removed from the flow rate is relatively small, resulting in long intervals between screen cleanings, the strainer screen is manually cleaned by shutting down the line and removing the strainer cap. There are different models available on request, however fabricated Y Type Strainers are commonly used. The details of the same are herewith.

Standard Material Data Sheet

PartCarbon SteelLow Temperature CSStainless SteelMonel
1.    BodyASTM A 106ASTM A333 GR 6AISI 304 / 316 / 304LMonel 400 / 500
2.    FlangesASTM A 105ASTM A350 GR LS2AISI 304 / 316 / 304LMonel 400 / 500
3.    Screen 1 & Screen 2AISI 304 / 316AISI 304 L / 316 LAISI 304 / 316 / 304LMonel 400 / 500
4.    InternalsAISI 304 / 316AISI 304 L / 316 LAISI 304 / 316 / 304LMonel 400 / 500
5.    GasketCNAF / PTFE / SPWSPWSPW / PTFESPW / PTFE / CNAF
6.    StudASTM A 193 GR. B7ASTM A 320 GR. L7ASTM A 193 GR B8Monel 400 / 500
7.    NutASTM A 194 GR.2HASTM A 194 GR.4ASTM A 194 GR. 8Monel 400 / 500

Notes:

1.       Recommended Spares shall be requested along the Order

2.       Screen 1 is Perforated, and Screen 2 is mesh

3.       Customised according to application and materials are interchangeable at actual with respect to the availability, please enquire before order

Dimension Chart

Size A (±10) B (±10) C (approx.) Screen Removal Weight (Kg)
(NB) 150# (mm) 300# (mm) 600# (mm) 150# (mm) 300# (mm) 600# (mm) 150# (mm) 300# (mm) 600# (mm) 150# 300# 600#
25 200 230 280 128 150 180 230 250 260 2.3 8.0 16.7
50 260 300 320 170 220 250 310 400 420 9.2 16.5 30.2
65 310 350 400 230 300 350 420 540 600 14.5 20.5 37.0
80 350 400 480 250 325 400 480 600 720 28.3 40.6 60.5
100 400 460 520 305 390 450 590 680 800 41.7 55.1 81.0
150 580 650 775 380 440 520 650 800 990 61.2 80.0 110.0
200 620 750 900 450 510 650 720 950 1050 78.5 108.0 165.0
250 726 980 1140 595 650 730 810 1080 1175 168.0 195.5 282.8
300 850 1100 1300 630 700 900 900 1300 1500 350.0 450.0 520.0
350 1020 1200 1415 710 900 1050 1008 1600 1760 390.0 510.0 750.0
400 1115 1350 1520 790 1050 1202 1060 1800 2020 435.0 560.0 890.0
500 1210 1500 1650 840 1126 1350 1100 1900 2175 608.0 670.0 1050.0
600 1285 1700 1890 950 1250 1490 1252 2120 2300 749.0 920.0 1248.0
700 1400 1900 2050 1200 1400 1605 1560 2200 2650 900.0 1155.0 1580.0
800 1650 2100 2400 1320 1600 1800 1780 2310 2780 1200.0 1600.0 1925.0
900 2200 2500 3100 1700 2000 2150 2350 2560 2899 1510.0 2025.0 2270.0
1000 2650 3100 3700 2020 2300 2565 2710 2820 2980 1850.0 2310.0 2600.0
Notes: 1.       Dimension are Experimented and found suitable for a standard pressure drop only, customized specifications and applications shall differ, request for a drawing post Ordering. 2.       Filtration area and Free Flow Area are calculated considering the standard available Filters, customized Filters shall differ accordingly (refer following pages for calculation)

Conical Strainers / Temporary Strainers

A cost-effective solution for protecting downstream equipment from sediment and debris during pipeline start-ups and commissioning. The models are highlighted with respect to velocity. Available in a wide variety of sizes, materials, and configurations to meet your specific needs. Designed for easy installation between piping flanges. Conical type temporary strainers are engineered to offer superior filtration efficiency. The conical design allows for a larger surface area compared to other strainer types, resulting in lower pressure drops and higher flow rates. This efficient filtration minimizes the risk of clogging and enhances the overall performance of the system.

Notes:

  • Selection of Low Velocity Model (LVM) Conical Strainer for Fluid Inlet Velocity < 1 m/s
  • Selection of Mid Velocity Model (MVM) Conical Strainer for Fluid Inlet Velocity 1 < 1.8 m/s
  • Selection of High Velocity Model (HVM) Conical for Strainer Fluid Inlet Velocity 1.8 < 2.5 m/s

Standard Material Data Sheet

Part

Stainless Steel

Low Carbon Stainless Steel

Flange Ring

AISI 304 / 316

AISI 304 L / AISI 316 L

Screen 1

AISI 304 / 316

AISI 304 L / AISI 316 L

Screen 2

AISI 304 / 316

AISI 304 L / AISI 316 L

Handle

AISI 304 / 316

AISI 304 L / AISI 316 L

Gasket

CNAF / SPW / PTFE (Optional)

SPW / PTFE (Optional)

Notes:

1.      Relevant selected spool piece with DP Gauges shall be supplied on request

2.      Screen 1 is Perforated, and Screen 2 is mesh

3.      Customised according to application and materials are interchangeable at actual with respect to the availability, please enquire before order



Dimension Chart

Size

A (±10)

B (±10)

C (±10)

D (±10)

E (±10)

Weight

(NB)

(mm)

(mm)

(mm)

(mm)

(mm)

LVM (Kg)

MVM (Kg)

HVM (Kg)

50

160

NA

NA

45

NA

1.5

1.1

2.4

80

200

NA

NA

72

NA

2.0

1.7

3.2

100

240

NA

NA

96

NA

4.5

3.0

6.3

125

280

300

75

120

20

7.0

5.8

9.0

150

400

340

80

146

32

10.8

8.0

13.6

200

520

480

100

197

40

16.0

11.9

19.5

250

610

600

150

245

60

25.0

20.8

30.7

300

680

680

160

295

72

31.0

27.6

36.5

350

750

750

180

340

80

37.0

33.0

43.0

400

900

925

200

390

88

41.0

37.8

47.0

500

1200

1200

240

492

95

46.0

42.0

53.0

600

1500

1500

280

595

110

58.0

54.0

65.0

Notes:

1.      Dimension are Experimented and found suitable for a standard pressure drop only, customized specifications and applications shall differ, request for a drawing post Ordering.

2.      Filtration area and Free Flow Area are calculated considering the standard available Filters, customized Filters shall differ accordingly (refer following pages for calculation)

3.      Flow Direction and Filter arrangement shall be changed as per site requirements, on request

4.      On change of flow direction, the dimensions are subjected to change and shall be requested by customer upon Ordering



Basket Strainer

A highest efficiency strainer that allows the fluid flow with minimal restriction, thus the pressure drop across is low. Available in various maintenance free options and less maintenance options. Inline and Offline are also available, on request. Custom built if needed. Venting and Draining options available with Plugs, whereas Valves can be given on optional basis.

Basket strainers are installed upstream of equipment like pumps, control valves, traps to keep potentially corrosive or damaging debris away from making its way down the line. They can be installed alone or in a series to increase filtration. Selection of mesh size are done by our engineers precisely to be able to filter that any foreign particles are ensnared in the basket. Additionally, consider other variables such as temperature and pressure requirements, and the type of liquid or gas traversing the basket strainer.

Dimension Chart

Size

A (±10)

B (±10)

C (±10)

Weight



(NB)

(mm)

(mm)

(mm)

(Kg)

50

240

260

180

8.9

80

300

326

190

15.0

100

340

380

210

20.5

125

360

400

225

22.7

150

400

435

230

29.9

200

450

480

240

38.1

250

500

600

325

59.0

300

630

720

430

91.2

350

750

730

450

124.0

400

900

850

450

160.0

Note: Dimension and Weight represented for End Connection of ANSI B 16.5 – 150# only, for Higher Pressure / Temperature applications, please request for details.

Standard Material Data Sheet

Part

Carbon Steel

Low Temperature CS

Stainless Steel

1.     Body

ASTM A 106

ASTM A333 GR 6

AISI 304 / 316 / 304L

2.     Inlet & Outlet Flanges

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

3.     Inlet and Outlet Pipes

ASTM A 106

ASTM A333 GR 6

AISI 304 / 316 / 304L

4.     Body Ring Flange

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

5.     Body Cover Flange

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

6.     Filter Plate

AISI 304 / 316

AISI 304 L / 316 L

AISI 304 / 316 / 304L

7.     Filter Assembly

AISI 304 / 316

AISI 304 L / 316 L

AISI 304 / 316 / 304L

8.     Bottom Cover

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

9.     Drain & Vent Plugs

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

10.  Fasteners

ASTM A 193 GR. B7 / A 194 GR.2H

ASTM A 320 GR. L7 / A 194 GR.4

ASTM A 193 GR B8 / A 194 GR. 8

Duplex Strainer

 The duplex strainer system consists of two separate strainer baskets housings. The system also contains a valve handle placed between the two baskets to divert the flow of liquid to one strainer while the other is being cleaned.

Duplex basket-type strainers are installed for continuous flow applications where the process can’t be shut down for cleaning. One chamber works and the other chamber is cleaned at the same time, ensuring the downtime to zero. Designs consist of inlet a single inlet and outlet with top accessible covers for each strainer allowing easy access to the inner strainer. The central manifold houses a lever enabling control of fluid flow to each side, and closing of each side for maintenance.

Dimension Chart

Size

A (±10)

B (±10)

C (±10)

Weight



(NB)

(mm)

(mm)

(mm)

(Kg)

50

260

360

210

20.0

80

326

430

300

42.0

100

380

500

340

54.0

125

400

610

410

59.0

150

435

750

525

91.8

200

480

850

600

150.2

250

610

1000

950

202.0

300

750

1250

1230

244.0

350

850

1400

1450

310.0

400

950

1450

1600

500.0

Note: Dimension and Weight represented for End Connection of ANSI B 16.5 – 150# only, for Higher Pressure / Temperature applications, please request for details.

Standard Material Data Sheet

Part

Carbon Steel

Low Temperature CS

Stainless Steel

1.     Body

ASTM A 106

ASTM A333 GR 6

AISI 304 / 316 / 304L

2.     Body Ring Flange

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

3.     Body Cover Flange

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

4.     Gasket

Non-Asbestos

PTFE

PTFE

5.     Filter Plate

AISI 304 / 316

AISI 304 L / 316 L

AISI 304 / 316 / 304L

6.     Filter Assembly

AISI 304 / 316

AISI 304 L / 316 L

AISI 304 / 316 / 304L

7.     Drain Plugs

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

8.     Vent Plugs

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

9.     Diverting Valves

ASTM A 105

AISI 304

AISI 304

10.  Fasteners

ASTM A 193 GR. B7 / A 194 GR.2H

ASTM A 320 GR. L7 / A 194 GR.4

ASTM A 193 GR B8 / A 194 GR. 8

Suction Diffuser

The Suction Diffuser is an off-centric in to out fitting that enables the pumping system to function at the most optimum performance parameters. It conditions the flow into the pump suction to ensure the highest pump efficiency retention. A wide variety of optional screens, mesh liners, covers, materials and other custom options are available to ensure the engineering of the product is done prior to manufacturing. Suction diffuser mounts to the suction side of a pump in either a horizontal or vertical position. It is designed to remove any foreign matter that may be hazardous to the pump or other system components, while providing the proper flow conditions to the pump.

Dimension Chart

Size

A (±10)

B (±10)

C (±10)

Weight



(NB)

(mm)

(mm)

(mm)

(Kg)

50

120

150

100

20.0

80

138

210

125

31.0

100

160

320

160

44.0

125

220

400

200

48.5

150

310

460

240

61.2

200

346

500

300

75.0

250

400

650

350

91.0

300

450

780

400

134.0

350

480

800

420

155.0

400

500

850

430

170.0

Note: Dimension and Weight represented for End Connection of ANSI B 16.5 – 150# only, for Higher Pressure / Temperature applications, please request for details.

Standard Material Data Sheet

Part

Carbon Steel / Cast Steel

Low Temperature CS

Stainless Steel

1.     Inlet Flange

ASTM A 106 / ASTM A 216 WCB

ASTM A333 GR 6

AISI 304 / 316 / 304L / CF8 / CF3

2.     Inlet Pipe

ASTM A 106 / ASTM A 216 WCB

ASTM A333 GR 6

AISI 304 / 316 / 304L/ CF8 / CF3

3.     Body

ASTM A 106 / ASTM A 216 WCB

ASTM A333 GR 6

AISI 304 / 316 / 304L/ CF8 / CF3

4.     Filter Assembly

AISI 304 / 316

AISI 304 L / 316 L

AISI 304 / 316 / 304L

5.     Body Ring Flange

ASTM A 105 / ASTM A 216 WCB

ASTM A350 GR LS2

AISI 304 / 316 / 304L / CF8 / CF3

6.     Body Cover Flange

ASTM A 105 / ASTM A 216 WCB

ASTM A350 GR LS2

AISI 304 / 316 / 304L / CF8 / CF3

7.     Gaskets

Non Asbestos

PTFE

PTFE

8.     Fasteners

ASTM A 193 GR. B7 / A 194 GR.2H

ASTM A 320 GR. L7 / A 194 GR.4

ASTM A 193 GR B8 / A 194 GR. 8

9.     Outlet Flange

ASTM A 106 / ASTM A 216 WCB

ASTM A333 GR 6

AISI 304 / 316 / 304L / CF8 / CF3

10.  Drain Plug

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

Self-Cleaning Strainers

SSTR-V18 uses motorized, automatic, self cleaning strainer provides continuous debris removal from fluid piping systems that demand full time uninterrupted flow which can be installed in an horizontal line and the sealing system is designed to perform no Leak proof in high pressure application also. Our Engineering and Designing capability allows to Develop Custom Built Automatic Strainers that can solve the requirements of different process, flow, debris, application and working pressure and temperature.

Types of Self Cleaning Strainers

1. Auto-Backwash Strainer (AB)

2. Auto-Cleaning Strainer (SC)

Dimension Chart

Size

A (±10)

B (±10)

C (±10)

Weight



(NB)

(mm)

(mm)

(mm)

(Kg)

50

240

320

180

10.0

80

300

350

190

20.0

100

340

400

210

23.0

125

360

450

225

29.5

150

400

480

230

35.0

200

450

500

240

41.0

250

500

650

325

65.0

300

630

780

430

101.0

350

750

800

450

134.0

400

900

920

450

170.0

Note: Dimension and Weight represented for End Connection of ANSI B 16.5 – 150# only, for Higher Pressure / Temperature applications, please request for details.

Due to the Continues improvement in Design, the mentioned specification, dimensions, weight and other values given are subjected to change, please check with us for a Detailed GAD after placing the Purchase Order.

Standard Material Data Sheet

Part

Carbon Steel

Low Temperature CS

Stainless Steel

1.       Body

ASTM A 106

ASTM A333 GR 6

AISI 304 / 316 / 304L

2.       Inlet & Outlet Flanges

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

3.       Inlet and Outlet Pipes

ASTM A 106

ASTM A333 GR 6

AISI 304 / 316 / 304L

4.       Body Ring Flange

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

5.       Body Cover Flange

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

6.       Filter Plate

AISI 304 / 316

AISI 304 L / 316 L

AISI 304 / 316 / 304L

7.       Filter Assembly

AISI 304 / 316

AISI 304 L / 316 L

AISI 304 / 316 / 304L

8.       Bottom Cover

ASTM A 105

ASTM A350 GR LS2

AISI 304 / 316 / 304L

9.       Gasket

Non-Asbestos / PTFE

SPW

SPW

10.    Fasteners

ASTM A 193 GR. B7 / A 194 GR.2H

ASTM A 320 GR. L7 / A 194 GR.4

ASTM A 193 GR B8 / A 194 GR. 8

11.    Gear Assembly

Carbon Steel

ASTM A333 GR 6

AISI 304

12.    Scrubber Motor

Carbon Steel

ASTM A333 GR 6

AISI 304

13.    Drain Motor

Carbon Steel

ASTM A333 GR 6

AISI 304

14.    PLC Controller

Carbon Steel

ASTM A333 GR 6

AISI 304

15.    DP Switch

(STD)

(STD)

(STD)

Foot Valve Strainer

FVS-V19 offers wide range of application and types. Choosing the right type for the right application is tedious, we recommend the application at suction with a considerable heads over the same. Size of FVS product range from 3/8” through 36” in several different models. The purpose of a foot valve is to maintain pump prime between pumping cycles. A strainer prevents debris from entering the piping system. Foot valves are designed to minimize head loss and optimize pumping efficiency.

Foot Valve Strainer is typically placed at the lower end of the suction pipe of a centrifugal pump to prevent the suction pipe from emptying while the pump is at rest; consequently, when the pump is first started it does not have to exhaust the air from the suction pipe with the result that prompt starting of the pump is secured. Foot valve is particularly useful when the suction lift or vertical height of the pipe is considerable.

Installation:

  • Inexpensive way to maintain pump prime
  • Designed for installation at the bottom of a pump suction line, inside a wet well
  • Ensure manually that the valve operates smoothly
  • Charge the pipeline with water and Ensure that there is no leakage through flange gaskets.
  • Maximum flow velocity in the pipe-line should not exceed 4 m/s.

FVS-V19-01

FVS-V19-02

FVS-V19-03

Standard Material Data Sheet

Model

FVS-V19-01

FVS-V19-02

FVS-V19-03

Material of Composition

CS / SS / Brass

CS / SS

Cast Steel / Cast Iron

Body

CS / SS / Brass / Other available on request

CS / SS – Galvanized

CS / CI

End Connection

Screwed / Threaded

Flanged / Clamped

Flanged / Custom Designed

Flange

NA

CS / SS – Galvanized

CS / CI

Filter

SS / Brass

SS304 / SS316

SS304 / SS316

Seats and Discs

SS / Brass

SS

CS / SS

Set Screw

SS / Brass

SS

NA

Fasteners

CS / SS

CS / SS

CS

Support Internals

SS304 / SS316

SS 304 / SS316

SS304 / SS316

Type

Disc / Float

Disc / Flapper

Disc / Flapper

Spring

Spring Steel / Custom Material

SS 304

Spring Steel

Heads

2 MWC

7 MWC

12 MWC

Design Pressure

Custom Designed

Custom Designed

Upto 10 kg/cm2 (g)

Design Temperature

8 to 50 Deg C

8 to 100 Deg C

Custom Designed

Sealings

PTFE / SPW / EPDM

PTFE & SPW

PTFE & SPW

Flow Rate

Upto 3 m/s velocity

Custom Designed

Custom Designed

As a continuous improvement process, the data in the table may differ with the actual product, ask for a GAD post ordering to ensure your requirement is matched.

  • +91-99940 72289
  • sales@enverdantind.com
  • First Floor, No: 2/137-G, Indra Nagar, Vadakoor, Aralvaimozhi, Kanniyakumari - 629301, India
Facebook Linkedin Instagram Youtube

Quick Links

Our Products

Newsletter

Copyright 2024 © Design and Develop by Beta Digital Marketing
